SINAN NETWORKS
무선카드단말기

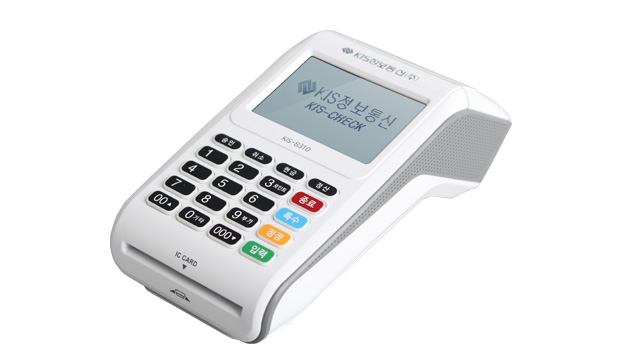

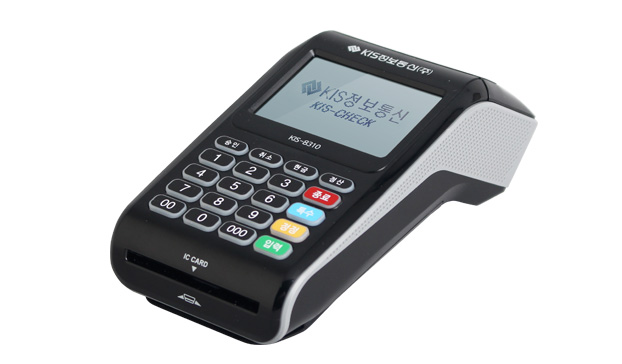

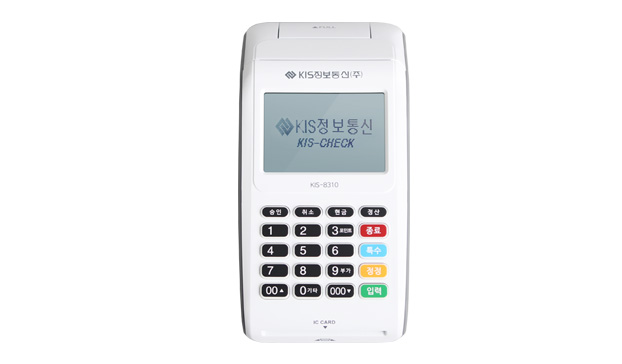

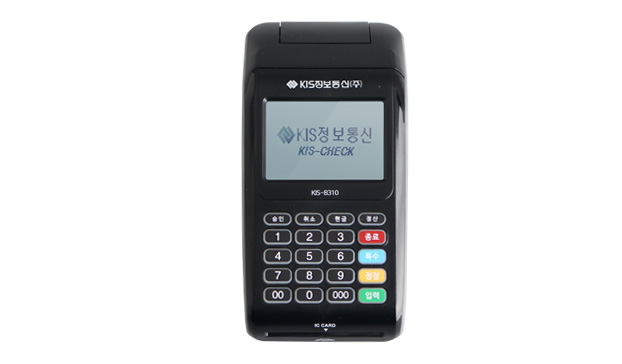

KIS-8310
Mono Touch LCD 무선단말기
-
ㆍ IC카드 결제(EMV Level1,2인증)
-
ㆍ 전자서명 기능 탑재
-
ㆍ 출력전표 매수설정 (거래구분별)
-
ㆍ 2인치 써멀 전표사용(30mm)
-
ㆍ SIZE : 78(W)mm X 155(L)mm X 55(H)mm
| CPU | ARM® Coretex-M7 Microprocessor | |
|---|---|---|
| MEMORY | FLASH | 1Mbyte |
| SERIAL FLASH | 2Mbyte | |
| SRAM | 384Kbyte | |
| OS | Firmware | |
| DISPLAY | 2.7inch STN MONO LCD (132(W) X 64(H)) White LED Backlight |
|
| BUTTON | 20Key | |
| 리더 | MS | ISO-7811 Compatible, 2/3 Track |
| IC | ISO-7816 Compatible, EMV L1, EMV L2 Certificate |
|
| MODEM | LTE CAT1, WCDMA (USIM 1 port) |
|
| PRINTER | 2 inch Thermal Printer Printing speed: Max. 60mm/sec, Paper diameter: Max. Ø30 |
|
| SOUND | BUZZER | |
| 외부포트 | Serial Port : 1 Ports (Download) | |
| POWER | Li-Polymer Rechargeable Battery (Soft Pack) 8.4V, 1500mAh |
|
